Product advantages：

● Body materials: stainless steel / brass

● Diaphragm material: 316L

● Seat material: PCTFE

● High sensitivity and excellent stability at set pressure points

●  Overpressure protection function

● Each valve is factory leak-tested with nitrogen at its rated pressure to achieve no detectable leakage

● Each valve is cleaned and packaged in accordance with USELL standards

Technical data

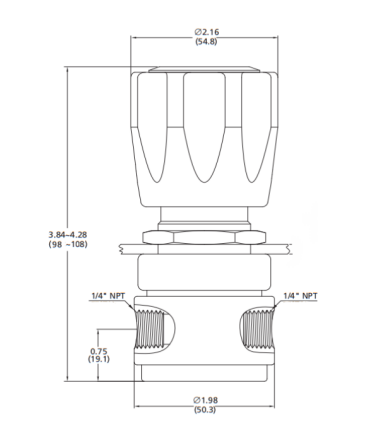

Structural dimensions

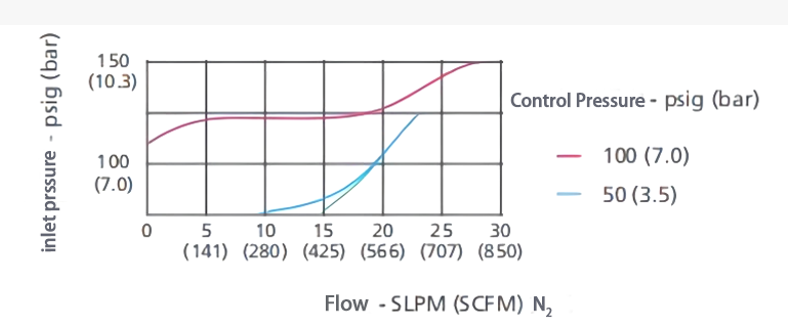

Flow curve

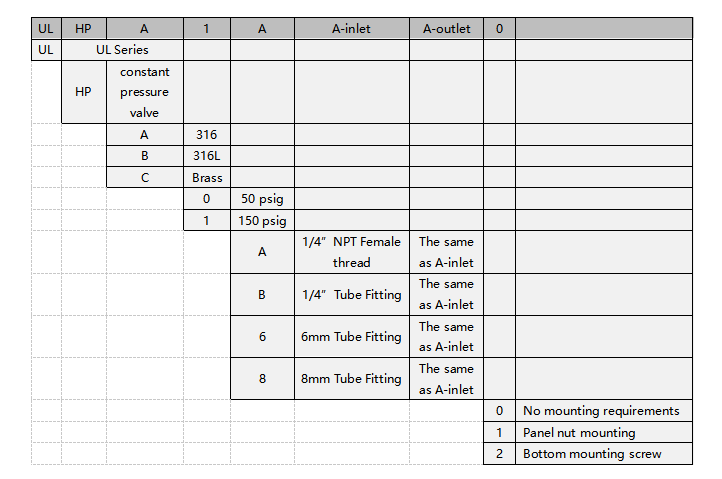

Selection Guide
